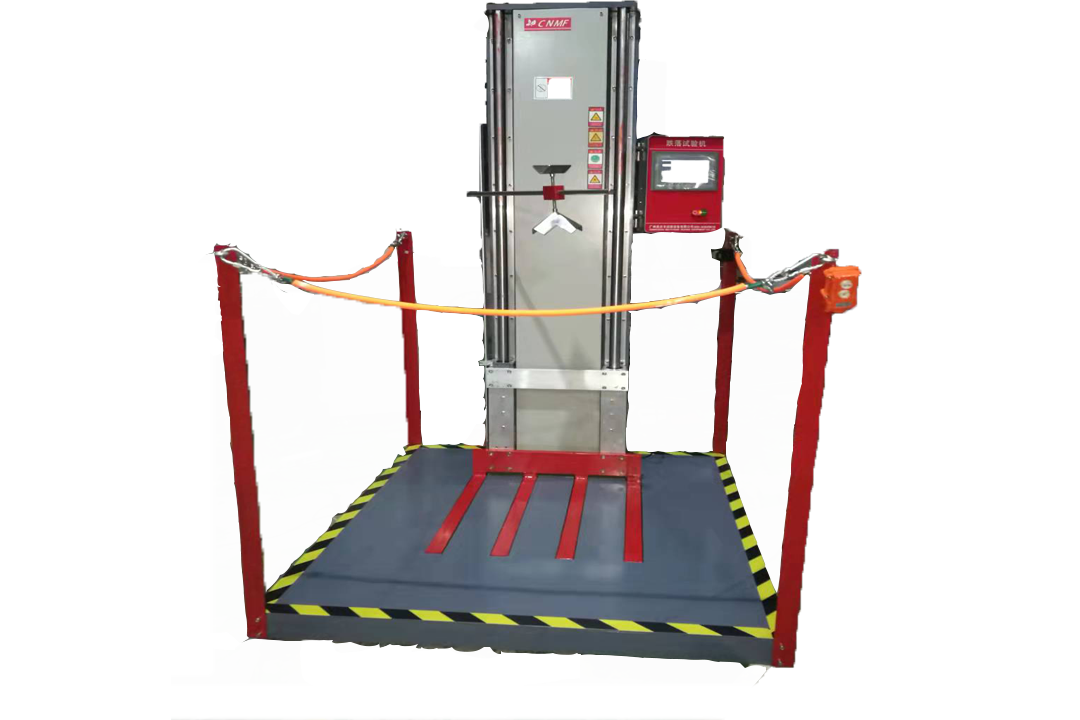

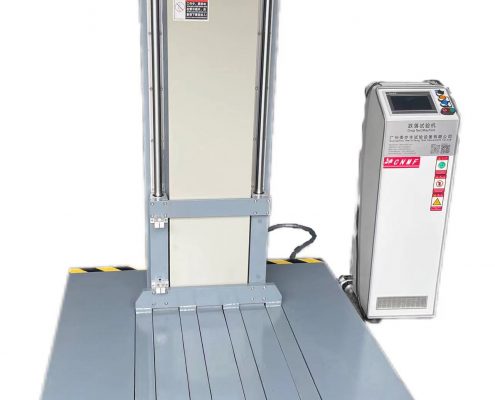

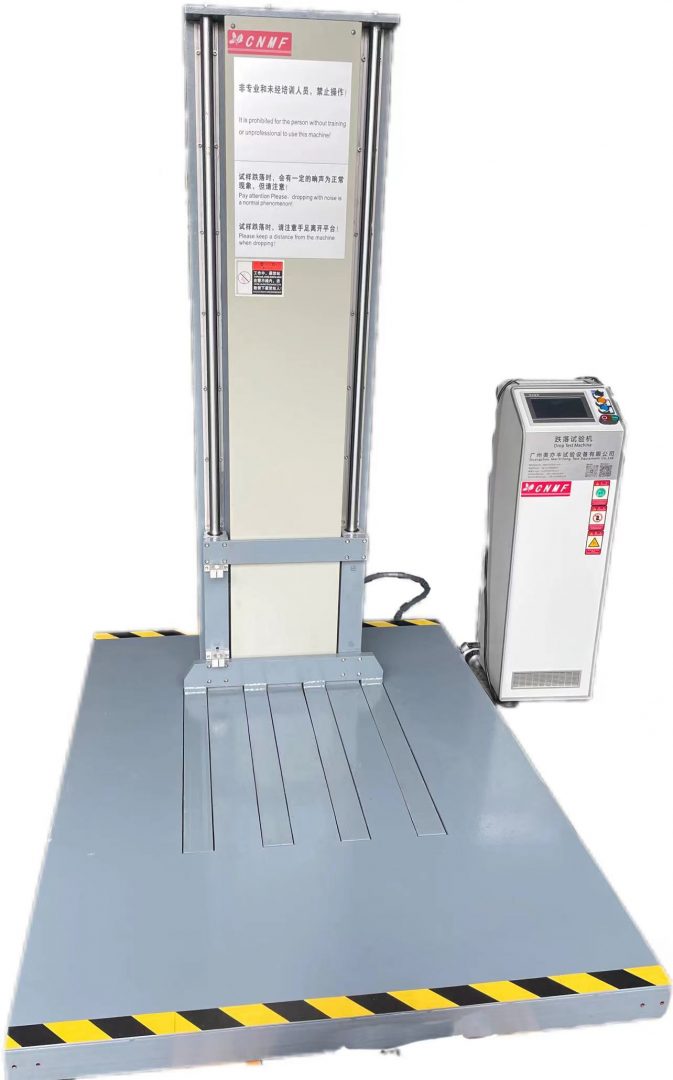

Zero drop testing machine
（The advantage is that it can be dropped at a very low height, especially suitable for short distance falls of large packaging）
Drop test machine/zero drop test machine
Usage description:
The zero-drop testing machine adopts a plate-type dual-rail guide and an electric lifting system, which is suitable for the drop test of packaged specimens with larger dimensions. The loading and unloading of the test piece is convenient and fast, and the drop test can be realized at a low height of edges, faces and corners. The drop height can be started from zero.
Features:
This testing machine adopts double-column guide and electric lifting system, with low noise and stable operation.
Touch screen control, the drop height can be digitally set according to the test requirements, and the drop test will be automatically executed according to the set height. It can realize the low height drop test of edges, faces and corners.
The main technical parameters:
| Model |
MF-LDL1000S-100 |
MF-LDL1000S-150 |
MF-LDL1000S-200 |
MF-LDL1000S-300 |
| Drop height (mm) |
0 to 1000 |
0 to 1000 |
0 to 1000 |
0 to 1000 |
| Maximum weight of test piece (Kg) |
100 |
150 |
200 |
300 |
| Maximum test size (mm) |
1200*1200*1200 |
1200*1200*1200 |
1200*1200*1200 |
1200*1200*1200 |
| Test method |
Edge falls, packaging surface fall, packaging corners fall |
Edge falls, packaging surface fall, packaging corners fall |
Edge falls, packaging surface fall, packaging corners fall |
Edge falls, packaging surface fall, packaging corners fall |
| controller |
touch screen |
touch screen |
touch screen |
touch screen |
| applicable standard |
ISTA 1A、ASTMD5276、GB/T 1019-2008, etc. |
ISTA 1A、ASTMD5276、GB/T 1019-2008, etc. |
ISTA 1A、ASTMD5276、GB/T 1019-2008, etc. |
ISTA 1A、ASTMD5276、GB/T 1019-2008, etc. |
※Special specifications can be customized according to customer requirements
