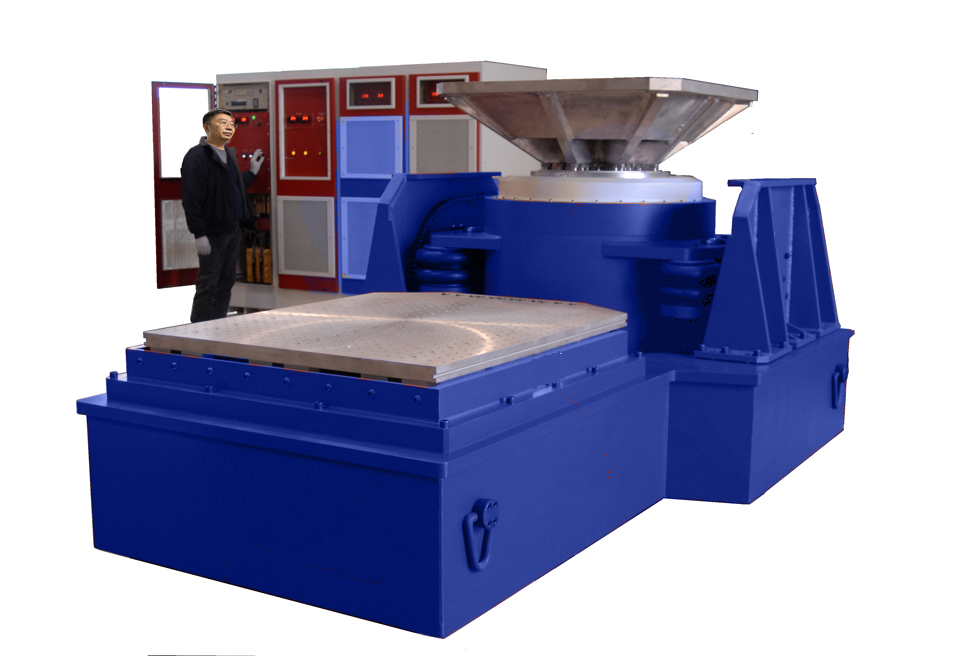

Two vertical and horizontal vibration testing machines

  • Features

    Excellent performance, beautiful appearance, good reliability, convenient use, simple maintenance. It is an ideal choice for laboratory environmental test equipment

  • Material

    Can be customized according to customers

  • contact details

    Contact person: Ms. Xia Chuanmin (Head of Marketing Department) Mobile phone: 13303021691

  • Introduction

    Vertical + horizontal vibrating machine This series of vibrating machines are widely used in industries such as national defense, aviation, aerospace, communications, automobiles, electronics, home appliances, and medicine. This equipment is used to find early failures of the product; to simulate actual working condition assessment and structural strength test to ensure the quality of the end product. The vertical and horizontal vibration actions are respectively completed on different platforms, economical and practical

Two vertical and horizontal vibration testing machines

Vibration testing machine/Vertical horizontal vibration testing machine/Two vertical and horizontal vibration testing machines

Usage description:

Vertical + horizontal vibrating machine This series of vibrating machines are widely used in industries such as national defense, aviation, aerospace, communications, automobiles, electronics, home appliances, and medicine. This equipment is used to find early failures of the product; to simulate actual working condition assessment and structural strength test to ensure the quality of the end product. The vertical and horizontal vibration actions are respectively completed on different platforms, which is economical and practical.

The main technical parameters:

project Technical index
Frequency Range 5 Hz ~500 Hz (or other)
Sweep frequency range 5 Hz~ ~500 Hz
amplitude (Adjustable range mmp-p): 0~5mm
Acceleration 0~10g /0~20g
Test load 0~50 kg (or other)
Vibration direction Vertical + horizontal (vertical vibration of a table body, horizontal vibration of a table body
Vibrating table size Lxw (mm) 450*450500 x0800 X010000 or other
Vibration waveform Sine wave (half wave/full wave)
Communication Interface Optional connection to the computer, storage, recording, and printing functions.
Features Sine wave, frequency modulation, sweep frequency, programmable, signal frequency, logarithm, maximum acceleration, amplitude modulation, time control, 485 communication interface display frequency, acceleration is not displayed. ) Including computer operating software (optional)
time control 999H60M60S
control Digital meter/computer
power supply AC 220V   50Hz
cooling method Fan air cooling



※Special specifications can be customized according to customer requirements
