Features
Excellent performance, beautiful appearance, good reliability, easy to use and simple maintenance. It is an ideal choice for laboratory environmental test equipment

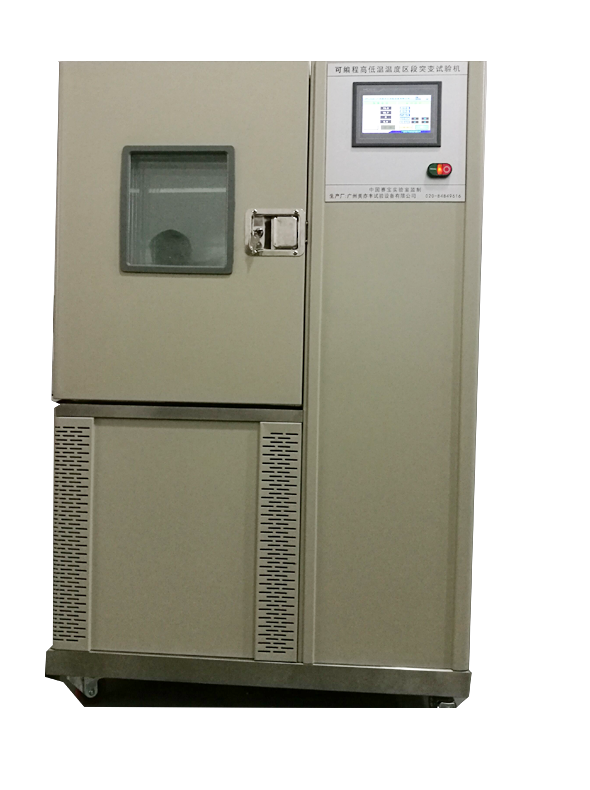

Rapid temperature change test chamber
1. Main technical indicators
Studio size: 1000D×1000W×1000H mm, the inner volume is about 1000L
Dimensions: about 3100D×1200W×2050H mm, excluding protruding parts such as controller and test hole.
Quick decompression device studio size: 400D×500W×600H mm (D×W×H), about 120L
Temperature range: -70℃～+150℃
Temperature fluctuation: ≤±0.5℃, no load
Temperature deviation: ±2℃, no load
Temperature uniformity: ≤2℃, no load
Heating rate: -55°C→+85°C, average 15°C/min (linear 10°C/min), loaded with 50Kg aluminum.
Cooling rate: -55°C→+85°C, average 15°C/min (linear 10°C/min), loaded with 50Kg aluminum.
Humidity range: humidity 20%～98%RH (temperature +20℃～+85℃)
Humidity deviation: ≤+2 -3%RH (>75%RH), ≤±5%RH (≤75%RH), under no-load conditions.
Power: about 84kW
Noise: ≤78dB(A), measured at a distance of 1 meter from the front of the box and a height of 1.2 meters from the ground.
Weight: 2100Kg
2. Product implementation standards
GB/T 2423.1-2008 Test A: Low temperature test
GB/T 2423.2-2008 Test B: High Temperature Test
GB/T 2423.3-2006 Test Cab: Constant Damp Heat Test
GB/T 2423.4-2008 Test Db: Alternating Damp Heat Test
GB/T 2423.22-2008 Test N: Temperature Change Test
GB/T 2423.9-2001 Constant damp heat test for equipment
GJB 150.3A-2009 High temperature test
GJB 150.4A-2009 Low temperature test
GJB 150.9A-2009 Damp heat test
GJB 1032-1990 Environmental stress screening test for electronic products
GB/T 10592-2008 Technical standard for high and low temperature test chamber
GB/T 10586-2006 Technical conditions of damp heat test chamber
GB/T5170.1-2008 General Provisions for Inspection Methods of Environmental Test Equipment for Electrical and Electronic Industries
GB/T 5170.2-2008 Test method for environmental test equipment for electrical and electronic products Temperature test equipment
GB/T 5170.5-2008 Test method for environmental test equipment for electrical and electronic products – Damp heat test equipment
-
