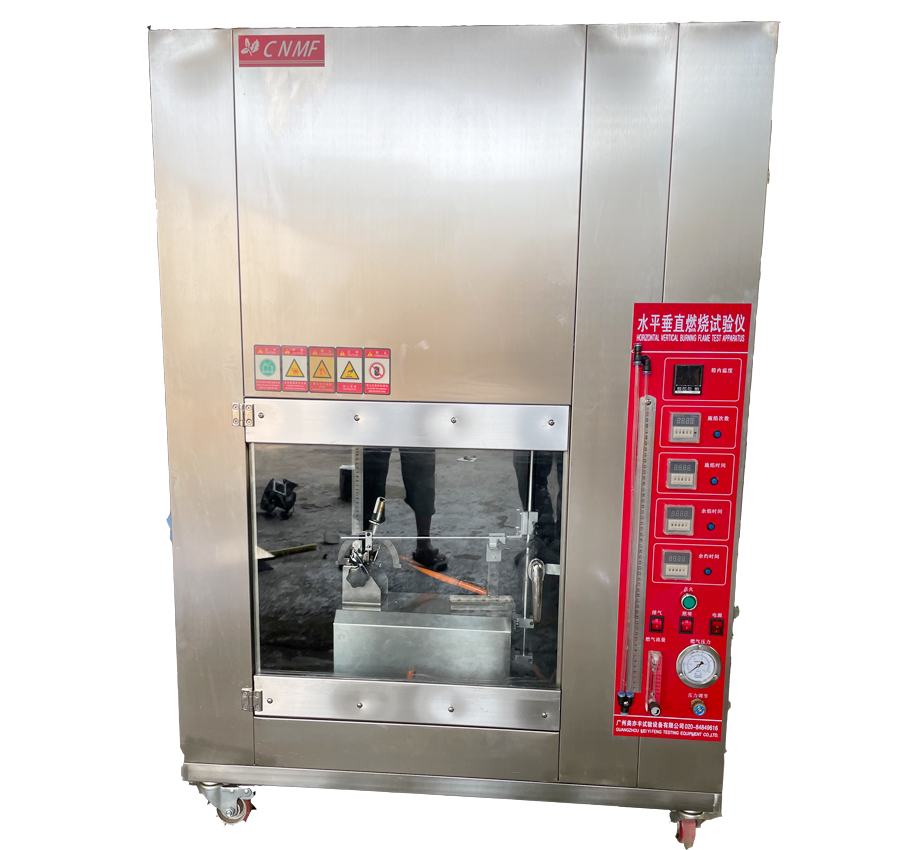

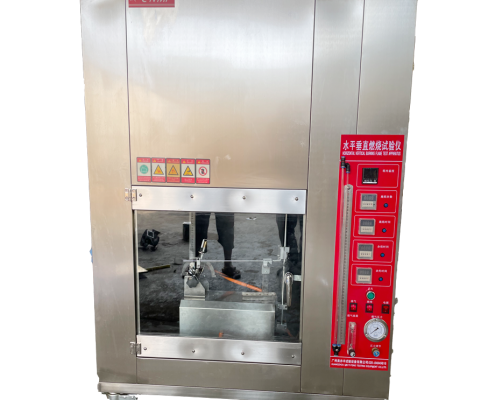

Product overview: When the surrounding of the product is on fire, it should be ensured that it will not cause combustion to spread. This tester is to simulate the early conditions of fire in the surrounding environment of electronic and electrical products, and use simulation technology to evaluate the fire risk to judge the fire resistance of plastics (HB grade). , V level, VMT level), the device has accuracy and automatic timing.
Scope of application: This test equipment is suitable for accessories, parts and components of household appliances of electronic and electrical products, such as insulating shells, switch panels, printed circuit boards and insulating materials of household appliances.
Product features: The combustion chamber of this tester has a beautiful appearance and is resistant to smoke and gas corrosion. The key components are imported parts, the time is digitally displayed, the fixture is three-dimensionally adjustable, the control system is automated, the air is independent, the observation record is convenient to use, stable and reliable. With gas flow meter.
Comply with GB/2408, GB13488, ISO1210, UL94 V-0 V-1 V-2, ASTM D635, D4804, 3801, IEC707 standards
Test box volume: ≥0.5M3
Burner: Bunsen burner. Tube length 100mm, inner diameter 9.5mm
Metal mesh: It is a square with a side length of 125mm, and the mesh plate is woven with a diameter of 0.45 steel wire into a diameter of 0.7mm.
Timer: 0~99.99S can be set arbitrarily.
Combustion gas: gas
Horizontal combustion test:
Designed according to 7.1~7.7 of UL94 HB and FH-1FH-2, FH-3 and CSA C22.2 NO.0.17 of GB/T2408
Burning angle: 90° Flame height: 20mm
Vertical burning test: designed according to V-0, V-1, V-2 of UL94 and FV-0, FV-1, FV-2 of GB/T2408
Burning angle: 90° Flame height: 20mm
※Special specifications can be customized according to customer requirements
