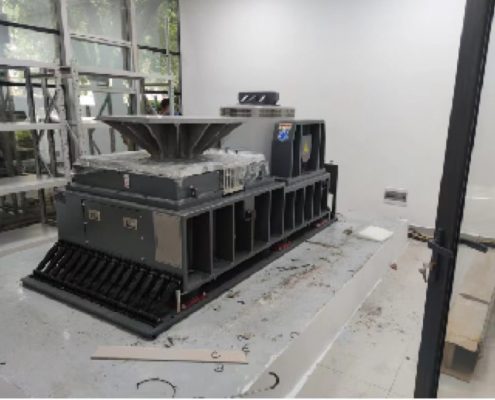

Computerized vertical horizontal vibration testing machine
Vibration testing machine/Vertical horizontal vibration testing machine/Computerized vertical horizontal vibration testing machine
Usage description:
Vertical + horizontal vibrating machine This series of vibrating machines are widely used in industries such as national defense, aviation, aerospace, communications, automobiles, electronics, home appliances, and medicine. This equipment is used to detect early failures of products, simulate actual working conditions and structural strength tests to ensure the quality of the end product. The vertical and horizontal vibration actions are completed by one machine, which can be automatically converted without manual adjustment.
The main technical parameters:
| project |
Technical index |
| Frequency Range |
5 Hz ~3000 Hz (or other) |
| FM function |
(Adjust 5~3000HZ arbitrarily) Any frequency within the frequency range cannot exceed one of the following 2 items (maximum acceleration <98g and maximum amplitude <51mm |
| Sweep frequency range |
5H~3000Hz |
| Sweep function |
(Adjust 5~3000HZ arbitrarily) (Upper frequency/lower frequency/time range) can be arbitrarily set true standard back and forth sweep frequency sweep function: (Adjust 5~3000HZ arbitrarily) (Upper frequency and lower frequency/time range) can be set arbitrarily True standard frequency sweep back and forth |
| amplitude |
(Adjustable range mmp-p): 0~51mm |
| Acceleration |
0~98g/0~ 20g |
| Test load |
0~300 kg |
| Vibration direction |
Vertical + horizontal |
| Vibrating table size |
L*W (mm) 450×450/500 X500/800 X 800/1 000X 1000 /or other |
| Vibration waveform |
Sine wave (half wave/full wave) |
| Communication Interface |
It can be connected to a computer for control, storage, recording and printing functions. |
| time control |
999H60M60S |
| control |
7 o’clock color touch screen/computer control |
| power supply |
AC 220V 5OHz/380V |
| Remarks: If you need to see the amplitude, acceleration, and accurate data, please specify when ordering. |
※Special specifications can be customized according to customer requirements
